Best Cast Steel Globe Valve Manufacturer in Saudi Arabia

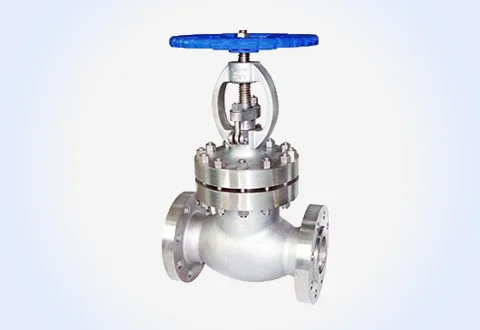

A cast steel globe valve is a type of linear motion valve used primarily to start, stop, and regulate flow in a pipeline. It is made from cast steel, which offers excellent strength, durability, and resistance to high temperatures and pressures.

🔧 Cast Steel Globe Valves – Overview, Features & Applications

A cast steel globe valve is a type of linear motion valve used primarily to start, stop, and regulate flow in a pipeline. It is made from cast steel, which offers excellent strength, durability, and resistance to high temperatures and pressures.

✅ Key Features of Cast Steel Globe Valves

Feature Description
Material Typically made from ASTM A216 WCB (carbon steel), WCC, or stainless steel for enhanced corrosion and temperature resistance.
Design Available in T-pattern (straight), Y-pattern (oblique), and angle-pattern for various flow conditions.
End Connections Flanged, butt-welded, or socket-welded ends.
Standards Conforms to international standards such as API 600, ASME B16.34, BS 1873, and ISO 9001.
Operation Handwheel, gear, electric actuator, or pneumatic actuator.
Pressure Classes Ranges from Class 150 to 2500.

🛠️ How It Works

The valve contains a movable disk (or plug) and a stationary seat. Turning the handwheel moves the stem and disk vertically:

  • Lowering the disk closes the valve (sealing the flow).

  • Raising the disk opens the valve (allowing flow).

  • Partial opening provides precise throttling control.

🧰 Applications

Cast steel globe valves are widely used in:

  • 🔧 Oil & Gas Pipelines

  • 🌡️ High-temperature steam services

  • 🧪 Chemical & Petrochemical processing

  • 💧 Water treatment plants

  • ⚡ Power generation plants

  • 🏭 Refineries and industrial utilities

🔄 Advantages

  • Excellent shut-off capabilities

  • Reliable throttling control

  • Long-lasting under high-pressure/temperature conditions

  • Easy maintenance and repair

❌ Disadvantages

  • Higher pressure drop than gate or ball valves due to flow path design

  • Larger footprint and heavier body

  • Not ideal for slurry or thick fluids

🔍 Popular Specifications

Parameter Range/Option
Size 2″ – 24″ (or larger custom)
Pressure Class 150 – 2500
Temperature Up to 600°C (1112°F)
Body Material Cast Carbon Steel (WCB, WCC), Stainless Steel, Alloy Steel
Trim Options 13Cr, F6a, F11, F22, Monel, etc.
Seat Renewable or integral

🌍 Where to Buy – Top Manufacturers

If you’re sourcing cast steel globe valves, here are some top Saudi Arabia-based manufacturers:

  1. Qaswa – Specialized Steel Valves (Dammam )

Need help with sourcing, datasheets, or custom specifications? I can assist you with that too.
